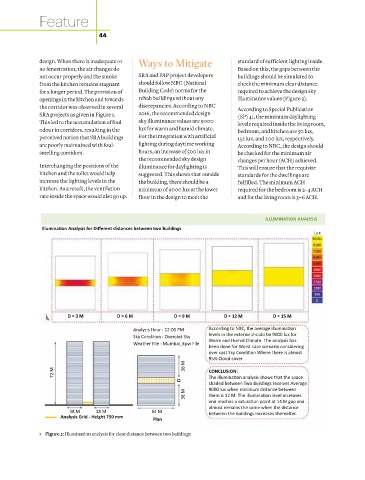

P. 46

Feature


                                44



             design. When there is inadequate or   Ways to Mitigate         standard of sufficient lighting inside.
             no fenestration, the air changes do                            Based on this, the gaps between the
             not occur properly and the smoke   SRA and PAP project developers   buildings should be simulated to
             from the kitchen remains stagnant   should follow NBC (National   check the minimum clear distance
             for a longer period. The provision of   Building Code) norms for the   required to achieve the design sky
             openings in the kitchen and towards   rehab buildings without any   illuminance values (Figure 2).
             the corridor was observed in several   discrepancies. According to NBC   According to Special Publication
             SRA projects as given in Figure 1.   2016, the recommended design   (SP) 41, the minimum daylighting
             This led to the accumulation of foul   sky illuminance values are 9000   levels required inside the living room,
             odour in corridors, resulting in the   lux for warm and humid climate.   bedroom, and kitchen are 50 lux,
             perceived notion that SRA buildings   For the integration with artificial   152 lux, and 200 lux, respectively.
             are poorly maintained with foul-  lighting during daytime working   According to NBC, the design should
             smelling corridors.             hours, an increase of 500 lux in   be checked for the minimum air
                                             the recommended sky design     changes per hour (ACH) achieved.
             Interchanging the positions of the   illuminance for daylighting is   This will ensure that the requisite
             kitchen and the toilet would help   suggested. This shows that outside   standards for the dwellings are
             increase the lighting levels in the   the building, there should be a   fulfilled. The minimum ACH
             kitchen. As a result, the ventilation   minimum of 9000 lux at the lower   required for the bedroom is 2–4 ACH
             rate inside the space would also go up.   floor in the design to meet the   and for the living room is 3–6 ACH.


                                                                                     ILLUMINATION ANALYSIS
              Illumina on Analysis for Different distances between two Buildings
                                                                                                    Lux
                                                                                                    9000+
                                                                                                    8100
                                                                                                    7200
                                                                                                    6300
                                                                                                    5400
                                                                                                    4500
                                                                                                    3600
                                                                                                    2700
                                                                                                    1800
                                                                                                    900
                                                                                                     0

                      D = 3 M         D = 6 M           D = 9 M         D = 12 M       D = 15 M
                                           Analysis Hour : 12:00 PM  According to NBC, the average illumina on
                                           Sky Condi on : Overcast Sky  levels in the exterior should be 9000 lux for
                                           Weather File : Mumbai_Epw File  Warm and Humid Climate. The analysis has
                                                                   been done for Worst case scenario considering
                                                                   over cast Sky Condi on Where there is almost
                                                                   95% Cloud cover
                                                           38 M
                  72 M                                             CONCLUSION:
                                                                   The illumina on analysis shows that the space
                                                          D        shaded between Two Buildings receives Average
                                                                   9000 lux when minimum distance between
                                                           38 M    them is 12 M. The illumina on level increases
                                                                   and reaches a satura on point at 14 M gap and
                                                                   almost remains the same when the distance
                       38 M    38 M              64 M              between the buildings increases therea”er.
                    Analysis Grid - Height 750 mm  Plan

                » Figure 2: Illumination analysis for clear distance between two buildings
