P. 49


                                                                                           Wind Analysis
                                                    Based on the Wind Analysis, it
                                                    was recommended to provide
                      Openings            Openings  through and through openings for
                                                    Refuge Floors. This enhanced the
                                                    wind flow between the wings of
                                                    the Proposed Building. The
                                                    ven la on rates also increased
                                                    because of the wind movement
                                                    in between the wings.
                                                    Providing Large Openings / Cut
                                                    outs also improve the wind flow
                                                    in and around the buildings.
                  Base Case          Proposed Case
                                                    Velocity                                       m/s
                   Refuge Area      Buildng Volume   0.00 0.50 1.00 1.50 2.00 2.50 3.00 3.50 4.00 4.50 5.00 5.50
               Wind Simula on Showing Wind flow through Refuge

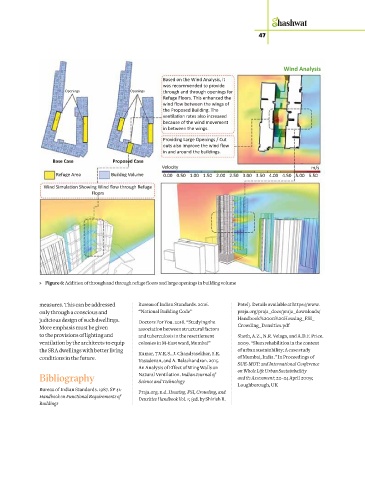

                » Figure 6: Addition of through and through refuge floors and large openings in building volume

             measures. This can be addressed   Bureau of Indian Standards. 2016.   Patel). Details available at https://www.
             only through a conscious and    “National Building Code”
             judicious design of such dwellings.   Doctors For You. 2018. “Studying the   Handbook%20on%20Housing_FSI_
             More emphasis must be given     association between structural factors   Crowding_Densities.pdf
             to the provisions of lighting and   and tuberculosis in the resettlement   Sheth, A.Z., N.R. Velaga, and A.D.F. Price.
             ventilation by the architects to equip   colonies in M-East ward, Mumbai”  2009. “Slum rehabilition in the context
             the SRA dwellings with better living   Kumar, T.V.K.S., J. Chandrasekhar, S.K.   of urban sustainbility: A case study
             conditions in the future.       Vasudevan, and A. Balachandran. 2015.   of Mumbai, India.” In Proceedings of
                                             An Analysis of Effect of Wing Walls on   SUE-MOT: 2nd International Conference
                                                                            on Whole Life Urban Sustainbaility
             Bibliography                    Natural Ventilation. Indian Journal of   and its Assessment; 22–24 April 2009;
                                             Science and Technology
                                                                            Loughborough, UK
             Bureau of Indian Standards. 1987. SP 41: n.d. Housing, FSI, Crowding, and
             Handbook on Functional Requirements of   Densities Handbook Vol. 1; (ed. by Shirish B.
